EV Components

EV Components Solutions

Electric Bus Solutions

China Vehicle Industry have been devoted in the field of retrofitting the light commercial vehicles with reliable EV component and sophisticated debugging technique,such as : OBC, DC/DC, DC/AC etc which guarantee the performance of the car and win the reputation of the client from the globe.

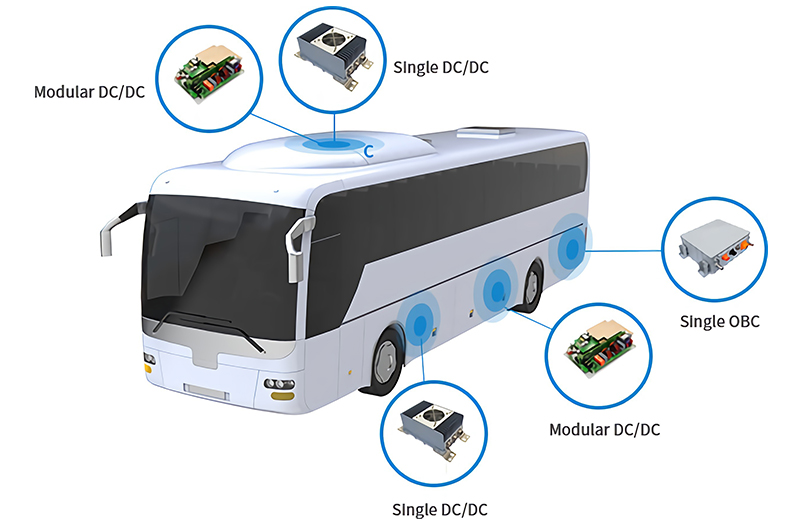

Pure Electric Bus Solution (Typical Application)
A low voltage power supply scheme
A1 single unit solution: 2kW~6kW DC/DC (air cooling/liquid cooling)
A2 integrated solution: 2kW~6kW DC/DC (module)
Modular application in all-in-one electronic control integration solution
B On-board charging unit solution
22kW~80kW OBC (liquid cooling)
C Air conditioning cooling power supply scheme
C1 Monolithic solution 2kW~3kW DC/DC (air cooling)
C2 Integrated Solution 2kW~3kW DC/DC (Module)
Modular application in all-in-one variable frequency control system

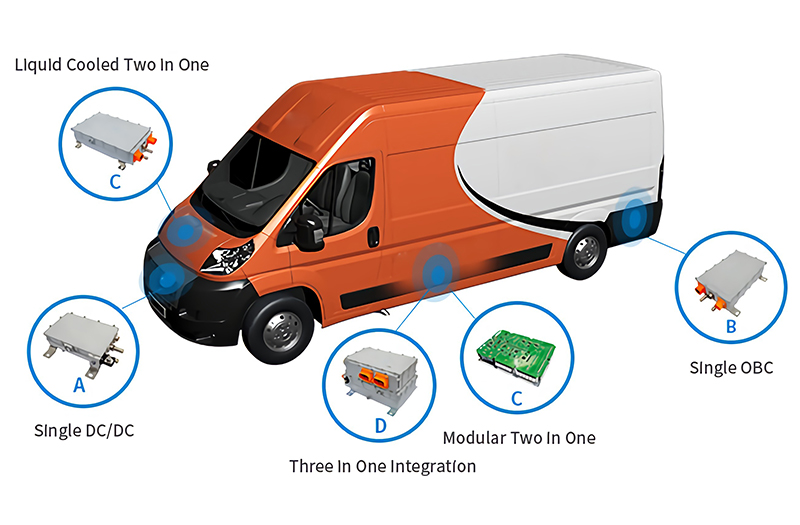

Light Commercial Vehicle Solutions

In response to the policy of green travel, low carbon and environmental protection, China Vehicle Industry actively promotes the electrification process in the field of light commercial vehicles by providing high reliable & stable on-board power supply solutions, which helps light commercial vehicles to take an "economy, environmental protection, efficient" sustainable development road.

Special Vehicle Solutions (Typical Application)
Low-voltage power supply unit solution
1.5kW~3kW DC/DC (air cooling/liquid cooling)
On-board charging unit solution
3.3kW~11kW OBC (air cooling/liquid cooling)
Two-in-one principle integration scheme
1.5kW~2kW DC/DC+3.3kW~6.6kW OBC (module/air cooling/liquid cooling)
Modular application in all-in-one electronic control integrated system
Three-in-one charging and distribution assembly
1.5kW~2kW DC/DC+3.3kW~6.6kW OBC+PDU (liquid cooling)

Construction Machinery Solutions

Adhering to the business philosophy that good quality changes the world, China Vehicle Industry provides high reliable & stable power supply solutions for construction machinery and equipment to guarantee their safety and high efficient operation.

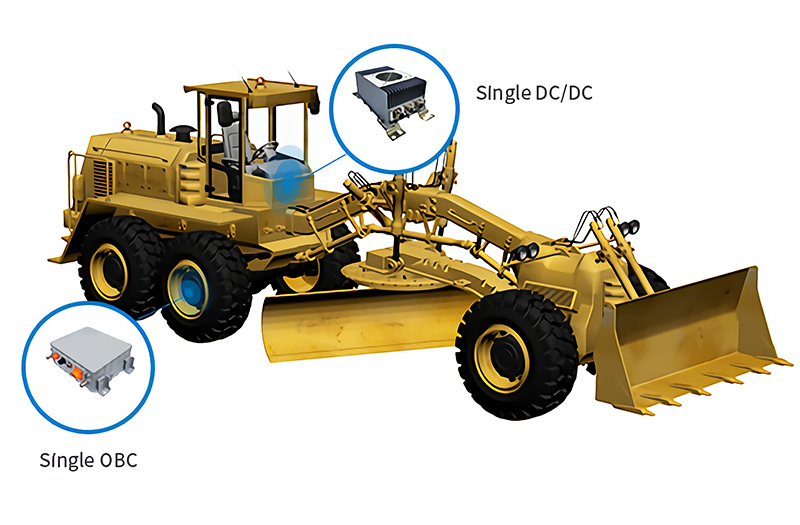

Construction Machinery Solutions (Typical Application)
A Low-voltage power supply unit solution
2kW~3kW DC/DC (module/air cooling)
Modular application in all-in-one electronic control integrated system
B On-board charging unit solution
11kW~80kW OBC (air cooling/liquid cooling)

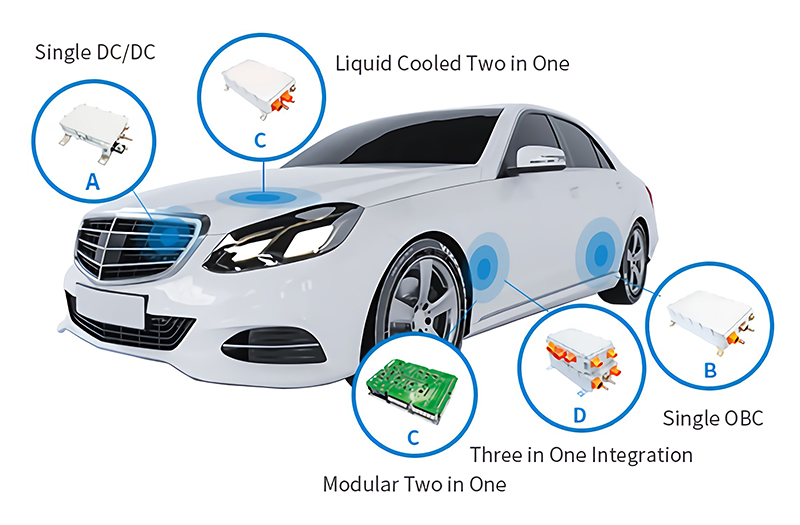

Passenger Car Solutions

More than 12 years of experience in new energy vehicle industry, China Vehicle Industry has built a first-tier technical innovation team, bringing passenger car on-board power supply solutions with ultra-high power density, high reliability and high stability.

Passenger Vehicle Solutions (Typical Application)
Low-voltage power supply unit solution
1.5kW~6kW DC/DC (air cooling/liquid cooling)
On-board charging unit solution
3.3kW~22kW OBC (air cooling/liquid cooling)
Two-in-one principle integration scheme
1.5kW~3kW DC/DC+3.3kW~11kW OBC (module/air cooling/liquid cooling)
Modular application in all-in-one electronic control integrated system
Three-in-one charging and distribution assembly
1.5kW~3kW DC/DC+3.3kW~11kW OBC+PDU (liquid cooling)

On Board Charger

Power Module

Liquid Cooled

Fan Cooled

Model	Power	Output voltage	Input voltage	Output current	Cooling method
LWC40K-380S640-W	40kW	304-456Vac Three Phases Four Lines L-N	450-750Vdc	80A	Liquid Cooled，IP67
LWC40K-380S540-W	40kW	304-456Vac Three Phases Four Lines L-N	400-650Vdc	85A	Liquid Cooled，IP67
LWC40K-380S380-W	40kW	304-456Vac Three Phases Four Lines L-N	200-450Vdc	120A	Liquid Cooled，IP67
LWC40K-380BS640-W	40kW	304-456Vac Three Phases Three Lines L-L	400-650Vdc	80A	Liquid Cooled，IP67
LWC40K-380BS540-W	40kW	304-456Vac Three Phases Three Lines L-L	400-650Vdc	85A	Liquid Cooled，IP67
LWC40K-380BS380-W	40kW	304-456Vac Three Phases Three Lines L-L	400-650Vdc	120A	Liquid Cooled，IP67
LWC22K-380S640-W	22kW	304-456Vac Three Phase Four Lines L-N	450-750Vdc	34A	Liquid Cooled，IP67
LWC22K-380S540-W	22kW	304-456Vac Three Phase Four Lines L-N	400-650Vdc	40A	Liquid Cooled，IP67
LWC22K-380S380-W	22kW	304-456Vac Three Phase Four Lines L-N	200-450Vdc	60A	Liquid Cooled，IP67
LWC22K-380BS640-W	22kW	304-456Vac Three Phases Three Lines L-L	450-750Vdc	34A	Liquid Cooled，IP67
LWC22K-380BS540-W	22kW	304-456Vac Three Phases Three Lines L-L	400-650Vdc	40A	Liquid Cooled，IP67
LWC22K-380BS380-W	22kW	304-456Vac Three Phases Three Lines L-L	200-450Vdc	60A	Liquid Cooled，IP6
LWC6K6B-220S640-A	6.6kW	85-265Vac	200-450Vdc	12A	Liquid Cooed，IP67
LWC6K6B-220S540-A	6.6kW	85-265Vac	450-750Vdc	14A	Power Modular
LWC6K6B-220S380-A	6.6kW	85-265Vac	400-650Vdc	20A	Power Modular
LWC3K3-220D380-A	6.6kW	85-265Vac	200-450Vdc	10A	Power Modular

DC/DC Converter

Natural Cooled

Power Modular

Fan Cooled

Liquid Cooled

Model	Power	Input voltage	Output voltage	Output current	Cooling method
LWD6K-540S27-W	6kW	400-750Vdc	27.5Vdc	218A	Liquid Cooled, IP67
LWD3K-640S27-M	3kW	400-900Vdc	27.5Vdc	110A	Power Modular
LWD3K-640S27-W	3kW	400-900Vdc	27.5Vdc	110A	Liquid Cooled, IP67
LWD3KB-380S27-A	3kW	400-750Vdc	13.8Vdc	181A	Fan Cooled, IP67
LWD2K5-540S14-M	2.5kW	400-750Vdc	13.8Vdc	181A	Power Modular
LWD2K5-540S14-W	2.5kW	400-750Vdc	13.8Vdc	181A	Liquid Cooled, IP67
LWD2K-540S14-M	2kW	400-750Vdc	13.8Vdc	145A	Power Modular
LWD2K-540S14-W	2kW	400-750Vdc	13.8Vdc	181A	Liquid Cooled, IP67
LWD2K-540S14-A	2kW	400-750Vdc	13.8Vdc	145A	Fan Cooled, IP67
LWD1K5-380S14-W	1.5kW	400-750Vdc	13.8Vdc	109A	Liquid Cooled, IP67
LWD1K5-380S14-A	1.5KW	250-450Vdc	13.8Vdc	109A	Fan Cooled, IP67
LWD300-540S24-M	300W	200-800Vdc	24Vdc	12.5A	Power Modular
LWD300-540S24-N	300W	200-800Vdc	24Vdc	12.5A	Natural Cooled, IP67

EV Motor & Controller

VAN

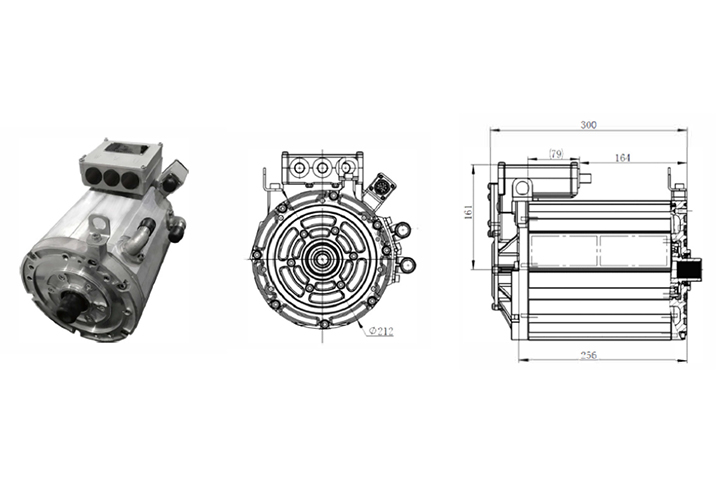

Pure electric Van solution for 2.5 tons

Motor form	PMSM	Model	TZ220XS030P1
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	360	Counter electromotive force(V peak)	630V@2000rpm
Rated power(KW)	55	Peak Power	130
Rated torque(Nm)	130	Peak Torque	300
Rated speed(rmp)	4000	Maximum Speed	12000
Insulation class	H	Protection class	IP67
Dimensions(mm)	ϕ269*270	Peak Current	470
Weight(KG)	50	Work Schedule	S9

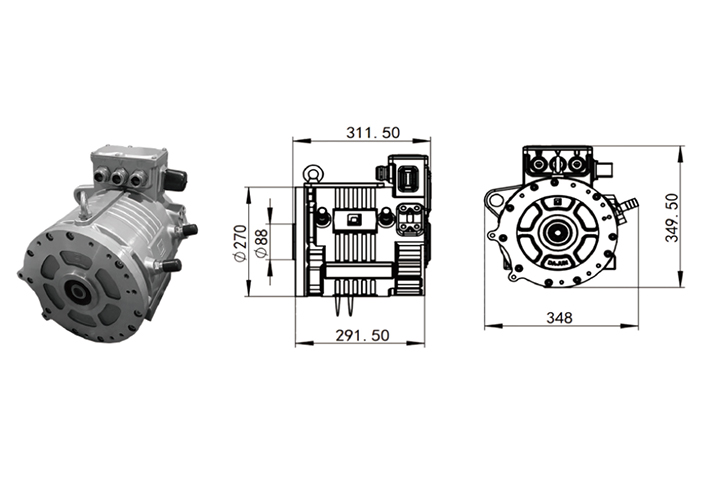

Pure electric Van solution for 3.5 tons

Motor form	PMSM	Model	TZ230XS025
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	360	Counter electromotive force(V peak)	512V@1200rpm
Rated power(KW)	45	Peak Power	105
Rated torque(Nm)	100	Peak Torque	250
Rated speed(rmp)	4300	Maximum Speed	12000
Insulation class	H	Protection class	IP67
Dimensions(mm)	Φ270x291.5	Peak Current	480
Weight(KG)	72	Work Schedule	S9

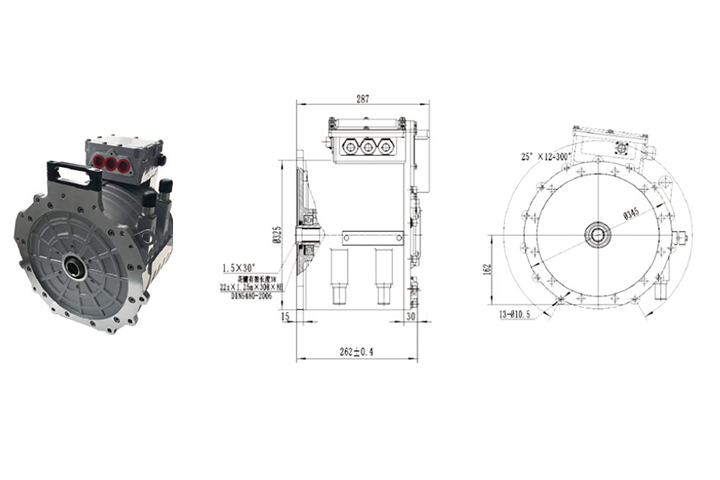

Pure electric Van solution for 4.5 tons

Motor form	PMSM	Model	TZ230XS045
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	518	Counter electromotive force(V peak)	1026@9000rpm
Rated power(KW)	73	Peak Power	200
Rated torque(Nm)	215	Peak Torque	550
Rated speed(rmp)	3200	Maximum Speed	9100
Insulation class	H	Protection class	IP67
Dimensions(mm)	Φ325&265	Peak Current	440
Weight(KG)	72	Work Schedule	S9

CITY BUS

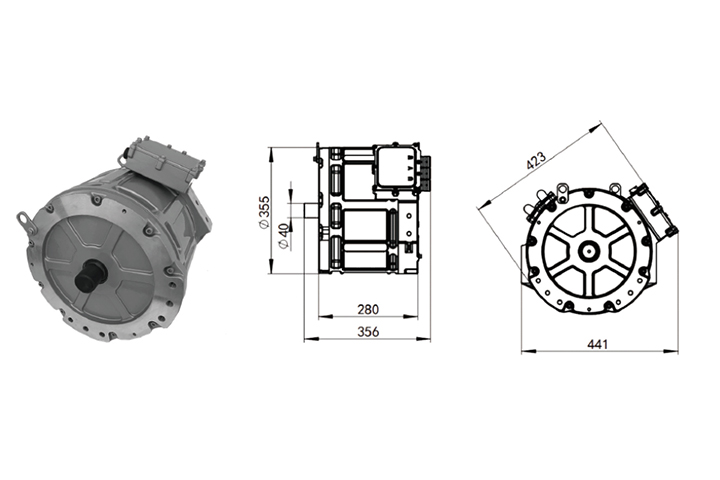

6~8M Merchant Bus

Motor form	PMSM	Model	TZ300XS090
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	576	Counter electromotive force(V peak)	1000V 4500rpm
Rated power(KW)	60	Peak Power	155
Rated torque(Nm)	350	Peak Torque	750 60S 900 40S
Rated speed(rmp)	1640	Maximum Speed	4500
Insulation class	H	Protection class	IP67
Dimensions(mm)	Φ355x280	Peak Current	470A 900Nm 350A 750Nm
Weight(KG)	90	Work Schedule	S9

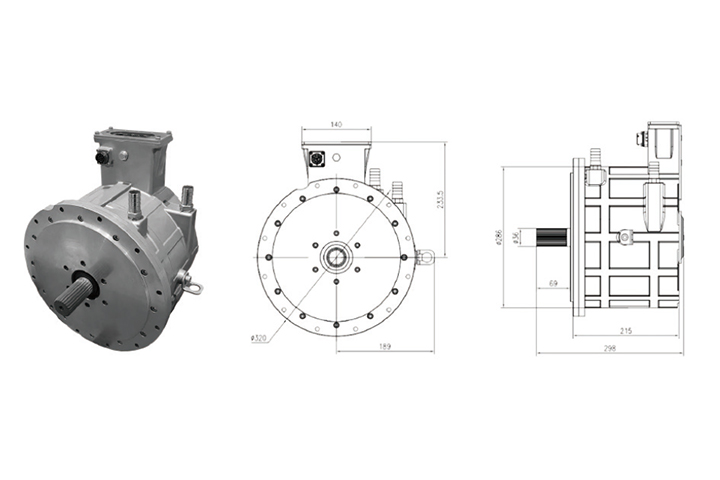

8~10M Merchant Bus

Motor form	PMSM	Model	TZ245XS038
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	384	Counter electromotive force(V peak)	656V 10000rpm
Rated power(KW)	70	Peak Power	141
Rated torque(Nm)	150	Peak Torque	382
Rated speed(rmp)	2800	Maximum Speed	10000
Insulation class	H	Protection class	IP67
Dimensions(mm)	Φ286x215	Peak Current	500
Weight(KG)	59.5	Work Schedule	S9

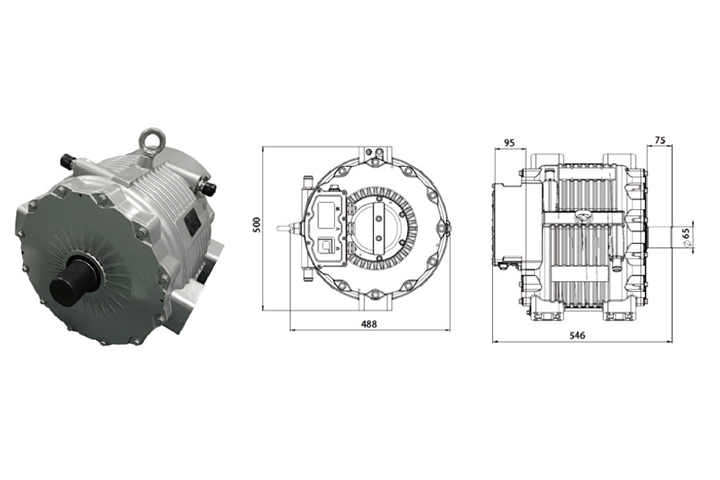

10~12M Merchant Bus

Motor form	PMSM	Model	TZ380XS200
Connection method	Y	Cooling method	Liquid
Rated voltage(VDC)	540	Counter electromotive force(V peak)	1120 3200rpm
Rated power(KW)	90	Peak Power	190
Rated torque(Nm)	1200	Peak Torque	2000
Rated speed(rmp)	760	Maximum Speed	3000
Insulation class	H	Protection class	IP67
Dimensions(mm)	Φ445x380	Peak Current	565
Weight(KG)	226	Work Schedule	S9

Truck

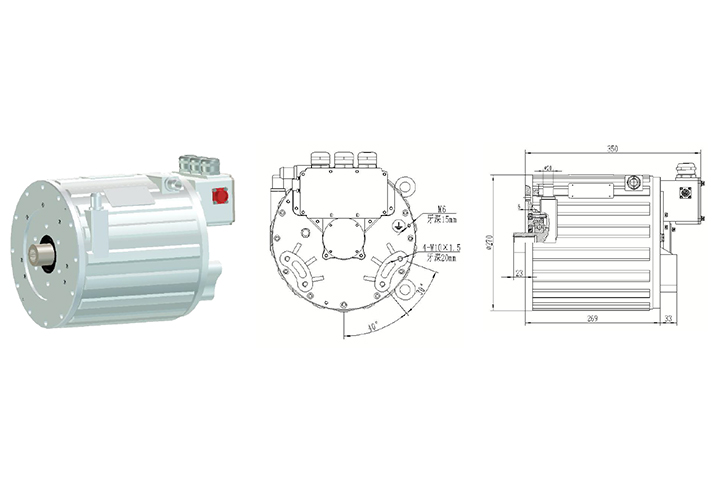

Pure electric Pickup truck solution for pickup truck

Model	Tz230XS-47-K01	Max Back EMF	746Vrms
Rated Power	47kW	Max Power	120KW
Rated Torque	145N.m	Rated Torque	350N.m
Rated Speed	3100rpm	Rated Speed	8500rmp
Batter Voltage	336VDC	Rated Cerrent	320A
Cooling Method	liquid	IP code	IP67

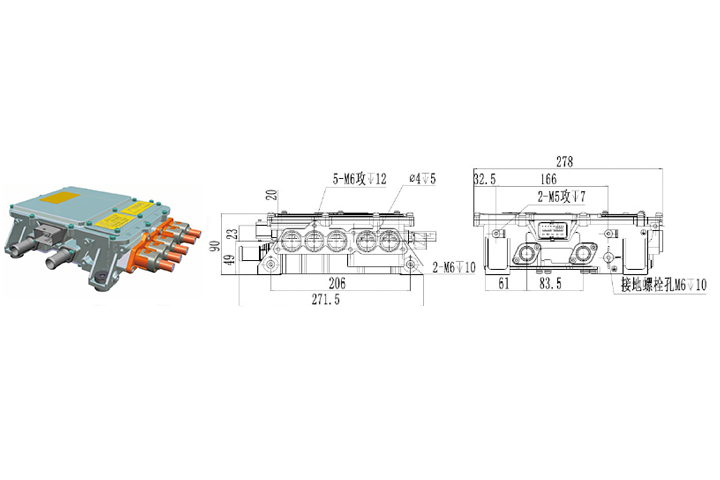

Pure electric Pickup truck solution for pickup truck

Model	KTZ34X33S-D1A
Voltage	250-420
Rated power(kVA)	65
Max power(kVA)	140
Rated current(A)	160
Max current(A)	335@30S

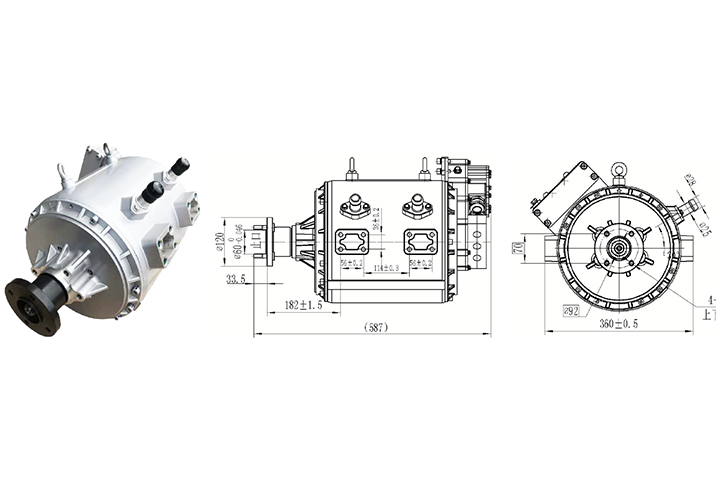

Pure electric truck solution for 4.5-6 tons

Model	Tz230XS-60	Max Back EMF	659Vrms
Rated Power	60kW	Max Power	120KW
Rated Torque	358N.m	Rated Torque	1000N.m
Rated Speed	1600rpm	Rated Speed	4500rmp
Batter Voltage	540VDC	Rated Cerrent	370A
Cooling Method	liquid	IP code	IP67

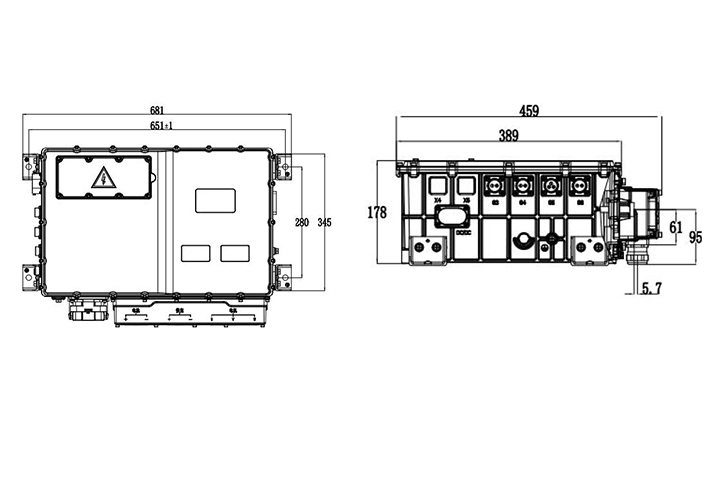

Pure electric truck solution for 4.5-6 tons

Model	KTZ38X44S-D3A
Rated Voltage(V)	384
Rated power(kW)	132
Rated current(A)	205
Max current(A)	410
Max output frequency(Hz)	800
