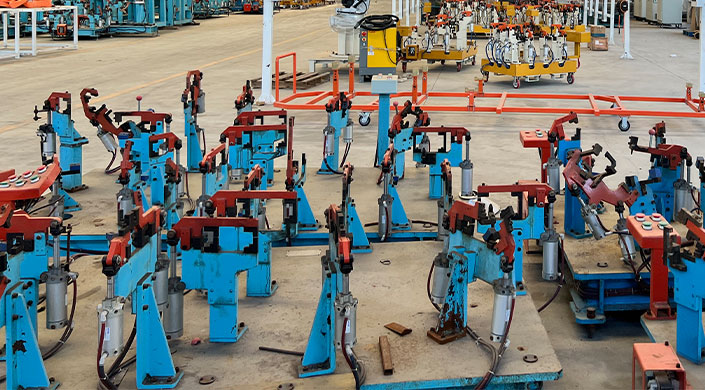

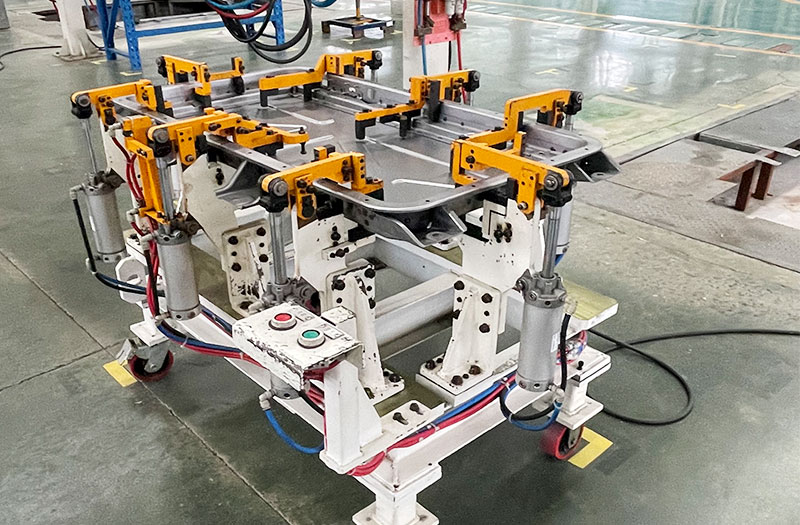

Welding fixtures

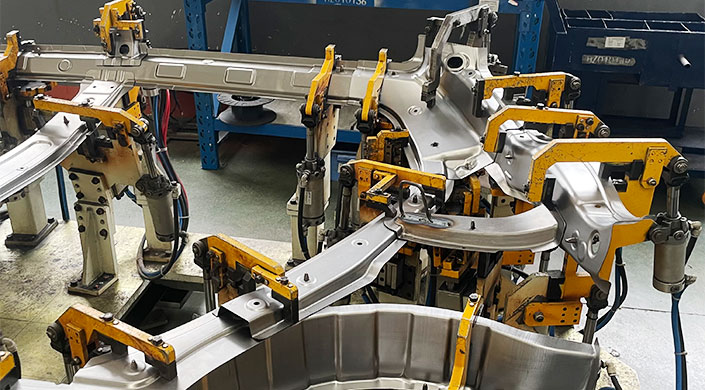

Working principle of pneumatic welding fixtures

The working principle of pneumatic welding fixtures mainly includes the following steps:
Air supply: compressed air enters the pneumatic clamp through the pipeline.
Drive: The pneumatic cylinder moves under the action of air pressure, moving or releasing the clamping part of the clamp toward the workpiece.
Clamping/Release: Pneumatic fixtures can quickly clamp or release workpieces to adapt to different work rhythms and needs.

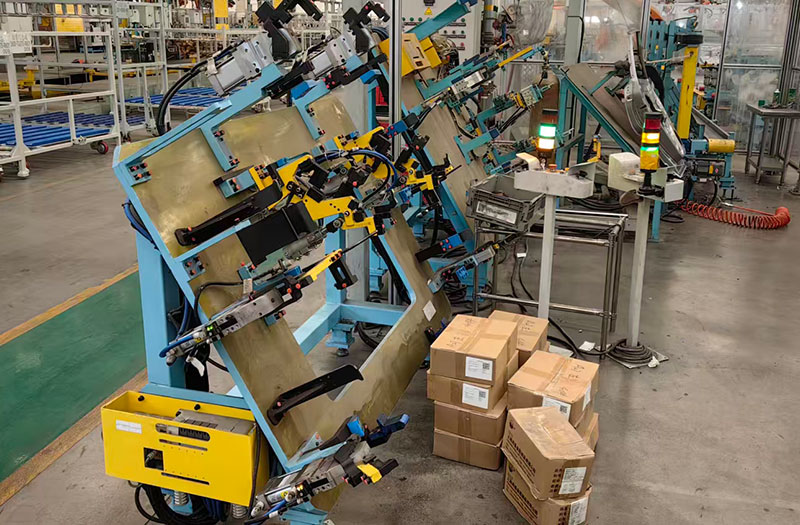

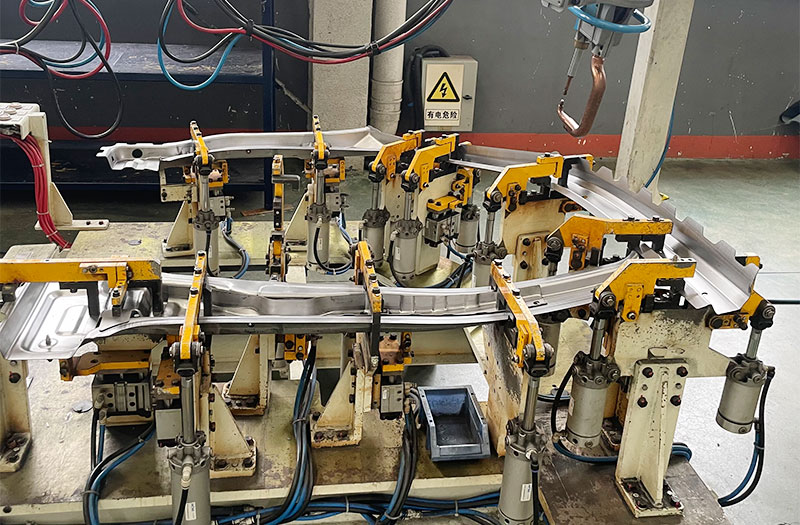

Main components of pneumatic welding fixtures

Pneumatic cylinder: the core component of pneumatic welding fixtures, responsible for realizing clamping and releasing movements.

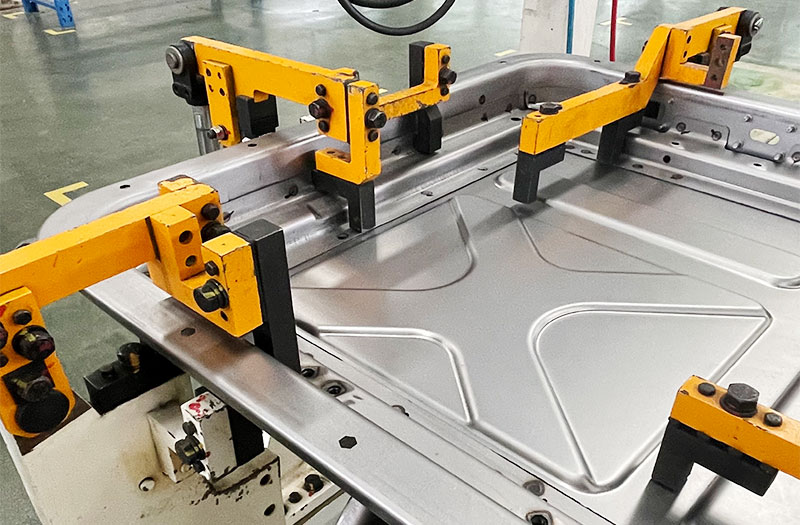

Clamping device: the part that is in direct contact with the workpiece, usually designed as a clamp that conforms to the shape of a specific workpiece.
Valve and control system: used to control the inflow and outflow of gas, usually including solenoid valves and buttons, etc.
Sensors: Some advanced pneumatic fixtures are equipped with sensors to monitor the clamping status and position.

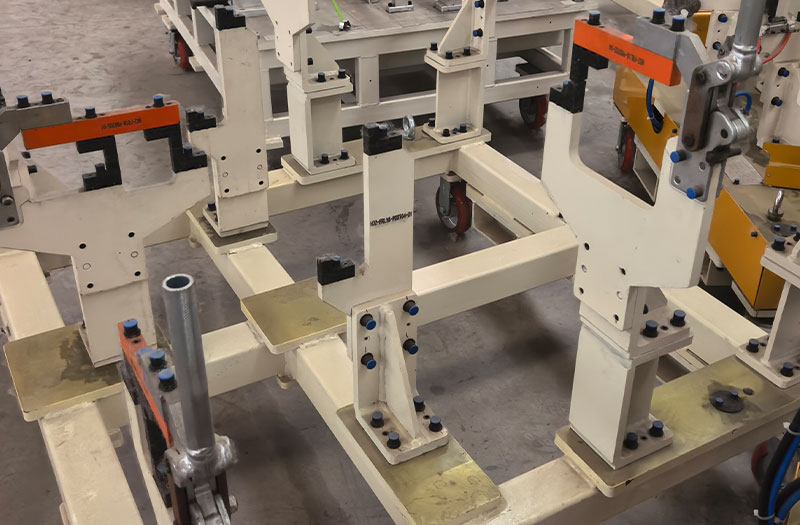

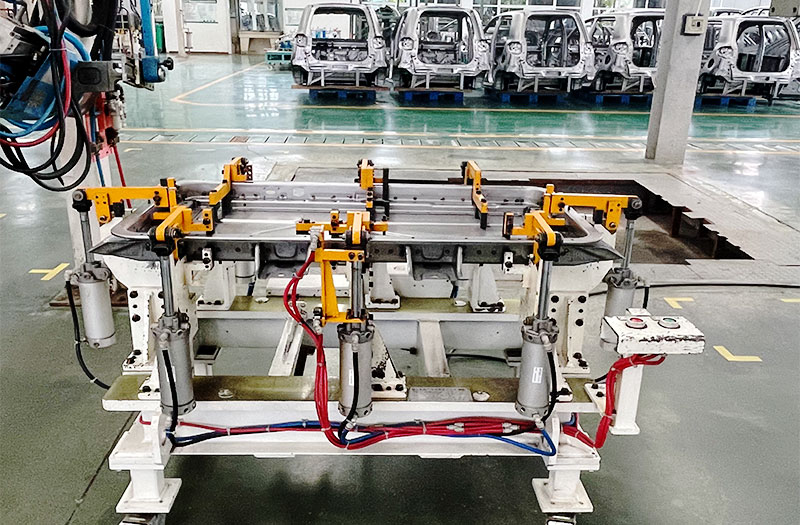

Advantages of pneumatic welding fixtures

High efficiency: Pneumatic welding fixtures can clamp and release quickly, suitable for fast production environments.
Consistency: Since the air pressure is controllable, pneumatic welding fixtures can continuously maintain a stable clamping force, thereby improving product consistency.
Easy operation: With pneumatic welding fixtures, workers only need to press a button or operate through a control system, without complicated manual operations.

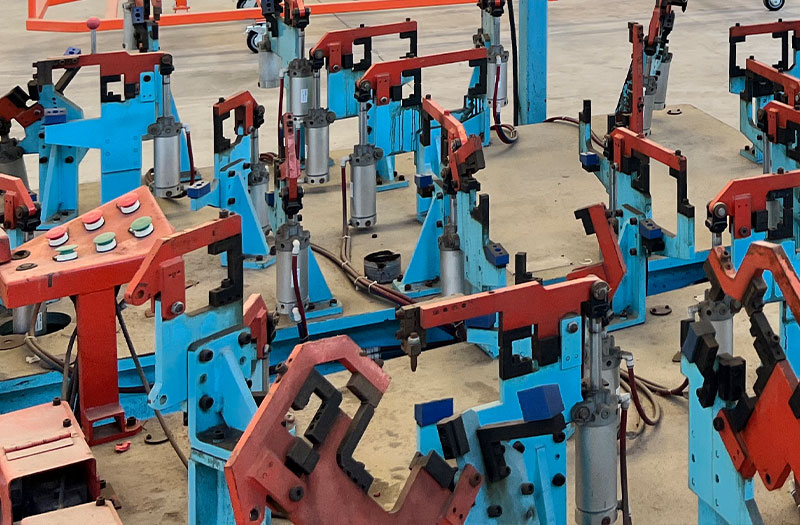

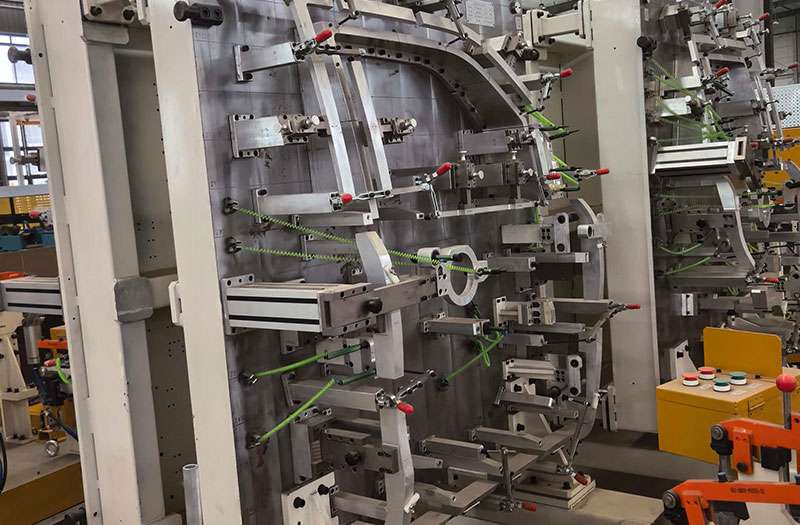

Application areas of pneumatic welding fixtures

Automobile manufacturing: used to assemble different automotive parts, such as body and chassis fixing and installation.
Electronic product assembly: Provide fast and stable clamping when assembling electronic components and circuit boards.
Machining: Effectively fix the workpiece to ensure machining accuracy during machining processes such as milling and drilling.
Welding station: Position steel plates or pipes to ensure welding accuracy (such as robot welding).
