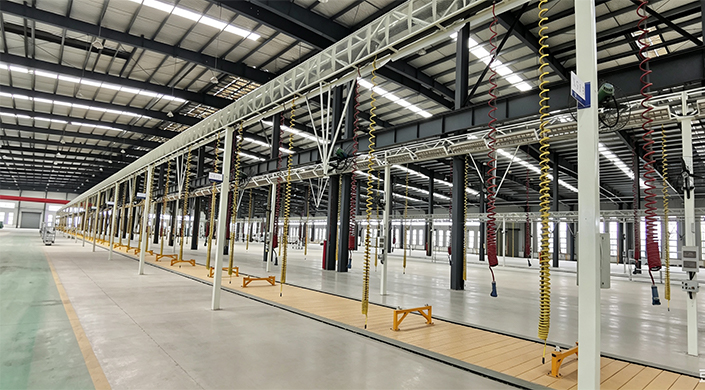

Single Chain Plate

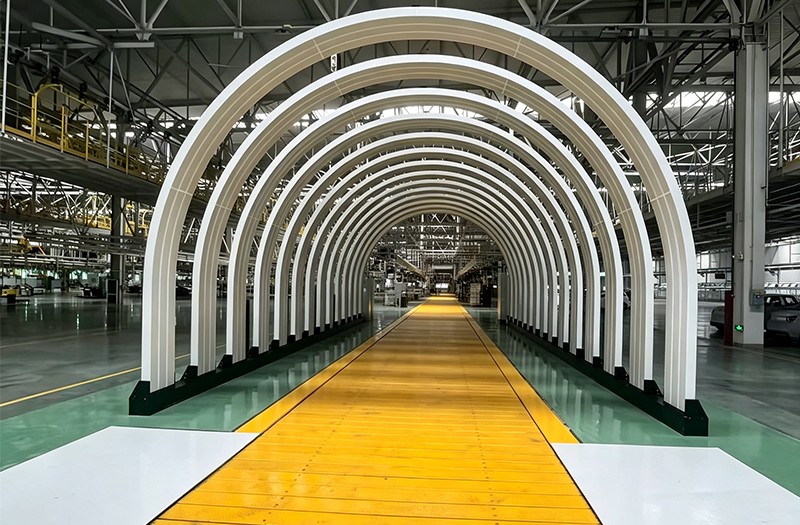

Components of Single Chain Plate

Components of Single Chain Plate
Conveyor Chain: This is the main conveyor component of the system and is usually made of high strength steel to withstand heavy loads and intense working environments.
Chain Plate: A flat plate mounted on the chain to provide a smooth surface for placing and transferring parts or mechanisms.
Drive: Usually consists of a motor and reducer to provide power for the movement of the chain.
Guides: Used to support and guide the movement of the chain to ensure it runs smoothly along a predetermined route.
Control System: Includes PLC (Programmable Logic Controller), sensors and other control equipment to monitor and control the automatic operation of the entire conveying process.

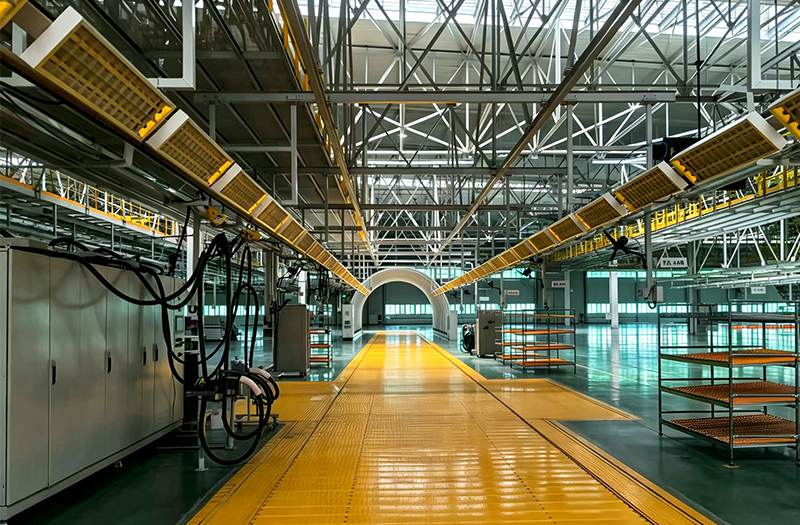

Working Principle of Single Chain Plate

A single chain plate conveyor system moves along the guide rail by means of a motor-driven chain. The parts or bodies on the chain move with the chain and are conveyed from one station to the next. The control system detects the position and status of the chain by means of sensors and PLC to ensure the accurate transfer of materials and the coordinated operation of the entire production line.

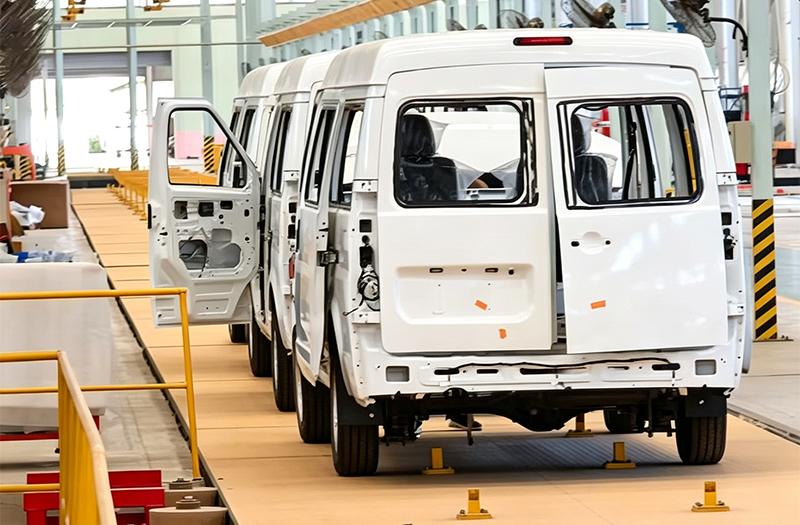

Advantages of Single Chain Plate

Efficient: Automatic conveying reduces manual operation and improves production efficiency.
Reliable: The design of the chain and chain plate can ensure stable operation under heavy load and in a complex environment.
Flexible: It can be customized and adjusted according to different production requirements, with strong adaptability.
Safety: Automation control reduces human errors and improves the safety of the production process.

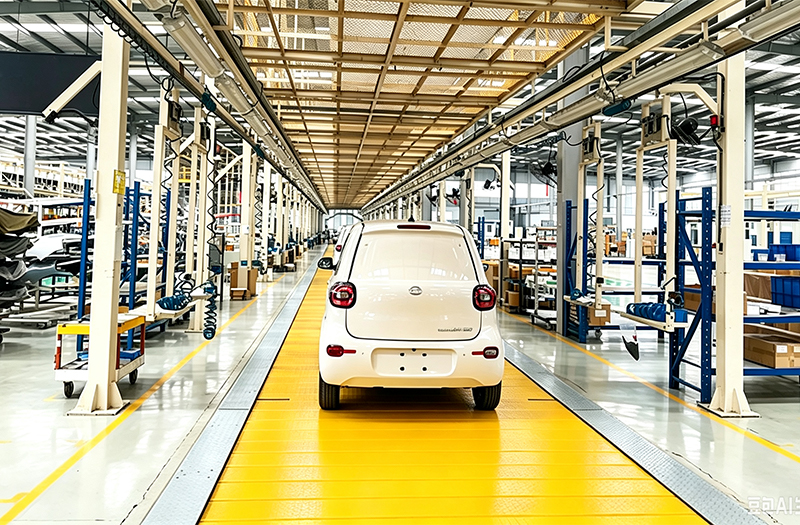

Application Scenarios of Single Chain Plate

Car assembly line: for transferring the body, chassis, and other large parts.
Parts production line: for transferring core parts such as the engine, gearbox, and so on.
Car painting shop: for transferring car bodies during the painting process.
