what is the vehicle jigs

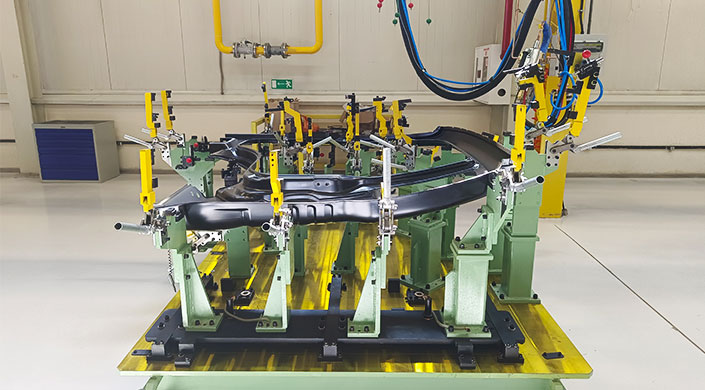

Welding Jigs

Welding jigs is used to fix and clamp the welding workpiece, in order to facilitate the welding operation. Welding fixture is usually composed of clamping device positioning device and guiding device and other parts, can ensure the precise position of the welding workpiece and stable clamping, to avoid welding deformation and quality problems.
Features of welding fixtures include.
1) Adjustability: welding jigs can be adjusted and adapted according to the shape and size of the welded workpiece to ensure the welding position.
2) High stability: the welding jigs can provide sufficient clamping force and support to ensure that the welding workpiece will not be shifted or deformed during the welding process.
3) high efficiency: welding jigs can improve the efficiency and quality of welding operations, reduce the impact of human factors on the welding quality. Welding fixture is mainly used in the welding process, such as welding workpiece positioning, support and clamping, etc.

Assembly fixture

Assembly fixtures is used to assist in mechanical assembly and debugging tools, ensure the position of the assembled workpiece and fit precision, and improve assembly quality and efficiency. Assembly fixtures are usually composed of a clamping device, a positioning device, and a support device, which can be used to clamp and position the assembled workpiece from various angles.
The characteristics of assembly fixtures include.
1) high precision fit: assembly fixtures can ensure the fit precision and positional accuracy of the assembled workpieces; 2) flexible and versatile.
2) Flexible and versatile: assembly fixtures can adapt to a variety of different shapes and sizes of assembly workpieces, allowing for flexible adjustment and replacement.
3) High stability: the assembly fixture can provide sufficient clamping force and support force to ensure that the assembly process will not shift or deform.
Assembly fixtures are mainly used in the field of mechanical assembly, such as the assembly of automotive parts, mechanical equipment debugging.

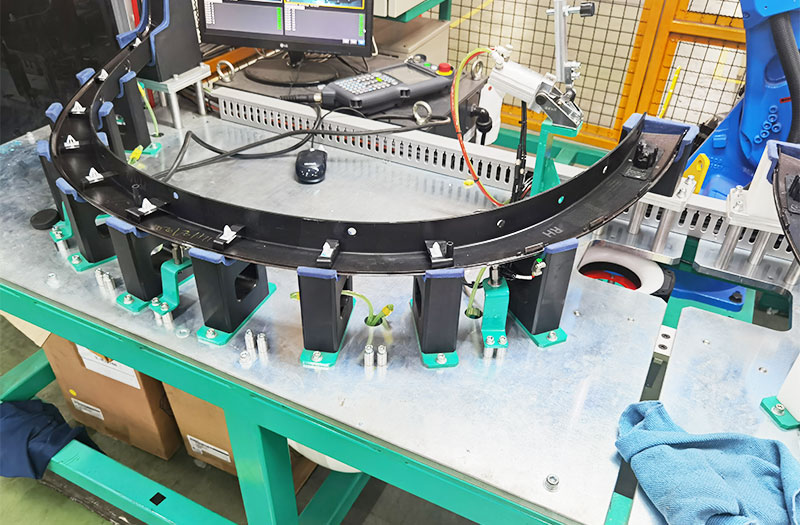

Inspection fixture

Inspection fixture is a tool used to assist in workpiece inspection and measurement, which can ensure the position and stability of the measured workpiece and improve the accuracy and reliability of measurement. Inspection fixtures are usually composed of clamping devices, positioning devices and support devices, can be from multiple aspects of the workpiece to be measured for clamping and positioning.
The characteristics of inspection fixtures include.
1) high precision measurement: inspection fixtures can ensure the position and stability of the measured workpiece in the measurement process, to improve the accuracy of the measurement; 2) flexible and versatile.
2) Flexible and versatile: inspection fixtures can be adapted to a variety of different shapes and sizes of the workpiece to be measured, flexible adjustment and replacement
3) High stability: the inspection fixture can provide sufficient clamping force and support to ensure that the measured workpiece will not be shifted or deformed in the measurement process.
Inspection fixtures are mainly used in machining, automotive manufacturing, aerospace and other fields of workpiece inspection and measurement.

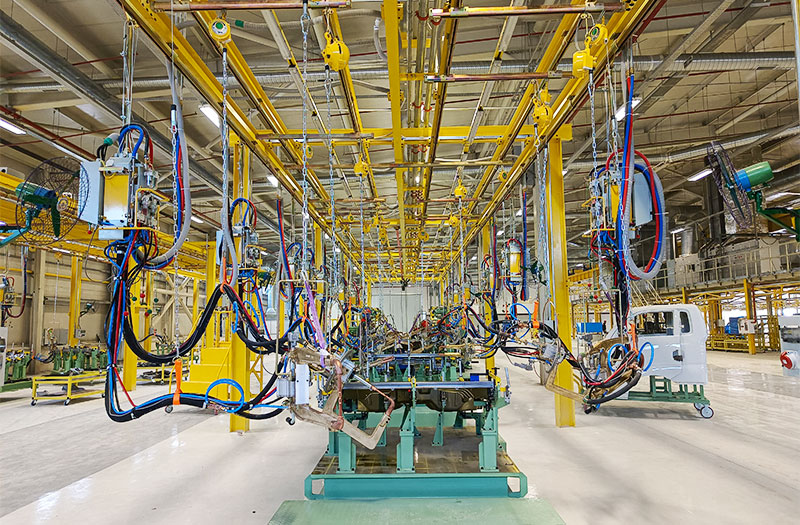

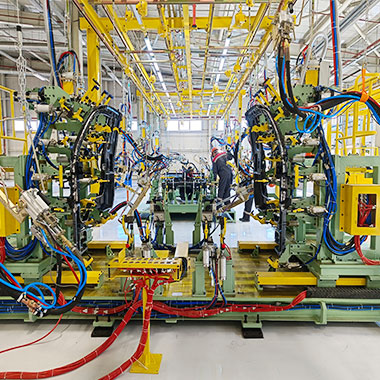

Welding jigs type

Right Side Fence Fixture

Top cover fixture

Base Plate Skeleton Fixture

Collocation Fixture

Side enclosure fixture

master sparring jig

Base plate fixture

Car Jigs
